SEEKER SSC 2840


Produced using a unique combination of specially selected materials for optimized full-spectrum audio signal transmission while taking into account of their resistivity, temperature coefficients, effects to Radio Frequency Interference (RFI), Electromagnetic Interference (EMI), electrostatic, skin effect, and ground noise. Coupled with GECKO® Balanced-Phase Noise Cancellation Winding Technique™, the GECKO® SEEKER SSC 2840 audiophile-grade snake cable system is ready to offer you the best of performance, practicality, and reliability at a truly great value. The GECKO® SEEKER SSC 2840 is the choice of professional musicians and sound engineers looking for true audiophile-grade connectivity!

Features at a glance:

  • 24 balanced XLR input channels, 4 balanced XLR returns on the stage box and fantail
  • Low impedance for long-distance connection (over 40m!)
  • High EMI and RFI resistance
  • Wide and smooth frequency response range
  • Fitted with OLYMPIAN series audiophile-grade connectors
  • Well-labeled tough steel/aluminium stage box with forged steel handle
  • Well-labeled, color-coded fantail

SPECIFICATION

Inputs

  • Stage Box: OLYMPIAN Chassis-Type Balanced XLR Female (24)
  • Fantail: OLYMPIAN XLR 303 PRO Balanced XLR Male (24)

Outputs

  • Stage Box: OLYMPIAN Chassis-Type Balanced XLR Male (4)
  • Fantail: OLYMPIAN XLR 304 PRO Balanced XLR Female (4)

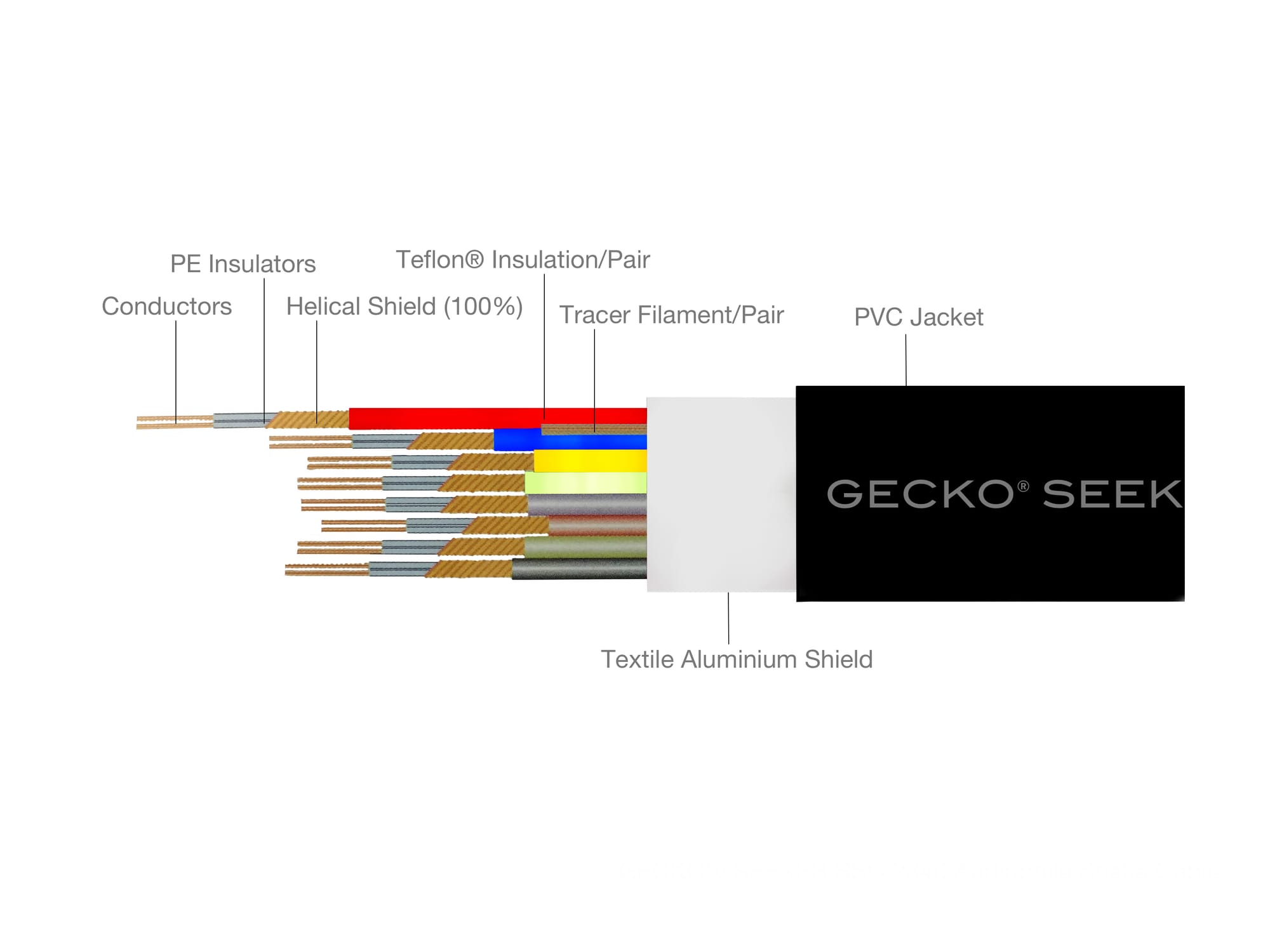

Conductors

  • Number of Conductors per Channel: 2
  • Conductor Material: 100% Pure Oxygen-Free Copper (OFC), Gold
  • Winding: GECKO® Balanced-Phase Noise Cancellation Winding Technique™
  • Size per Conductor: 24AWG (7 Strands 32AWG)
  • Insulation Material: Polyethylene (PE)
  • Insulation Diameter per Conductor (∅): 1.6mm

Helical Shield per Channel

  • Material: 100% Pure Oxygen-Free Copper (OFC)
  • Size: 24AWG (48 Strands 32AWG)

Pair Conductors Insulation

  • Material: Teflon®
  • Insulation Diameter (∅): 3.6mm

Protections

  • Grounding Protection: Tracer Filament
  • RFI/EMI Protection: Textile Aluminium Shield

Outer Jacket

  • Material: Polyvinyl Chloride (PVC) - Flame retardant and sunlight resistant matte 60°C

Physical Properties

  • Stage Box Enclosure: Steel, Aluminium
  • Color: Metallic Grey (Stage Box), Black (PVC Jacket), Individual Channel Color/Text Coded
  • Cable Length: 40m
  • Net Weight: 30kg
  • Stage Box Dimension: (H) 55mm x (W) 128mm x (D) 330mm (Includes Handle)
