GENESIS ELEGANCE AGE 300H/AGE 600H/AGE 900H


Introducing the world's first line-replaceable unit (LRU) audiophile-grade power amplifiers! Our latest GECKO® GENESIS ELEGANCE power amplifiers incorporate refined 16-stage C.R.I.S.T.A.L.® Audiophile Class-H technology for precision audio reproductions. The new 16-stage C.R.I.S.T.A.L.® Audiophile Class-H technology allows wider frequency bandwidth being processed in many bands of “frequency cells” more efficiently while maintaining the desired RC time constants. The result – superb audiophile clarity and an energy-efficient system with lots of headroom. Hence, playing a familiar audio source through any one model of the GENESIS ELEGANCE C.R.I.S.T.A.L.® Audiophile Class-H power amplifier in your system setup; you will be able to hear the track in superb clarity and details you have missed out all these while!

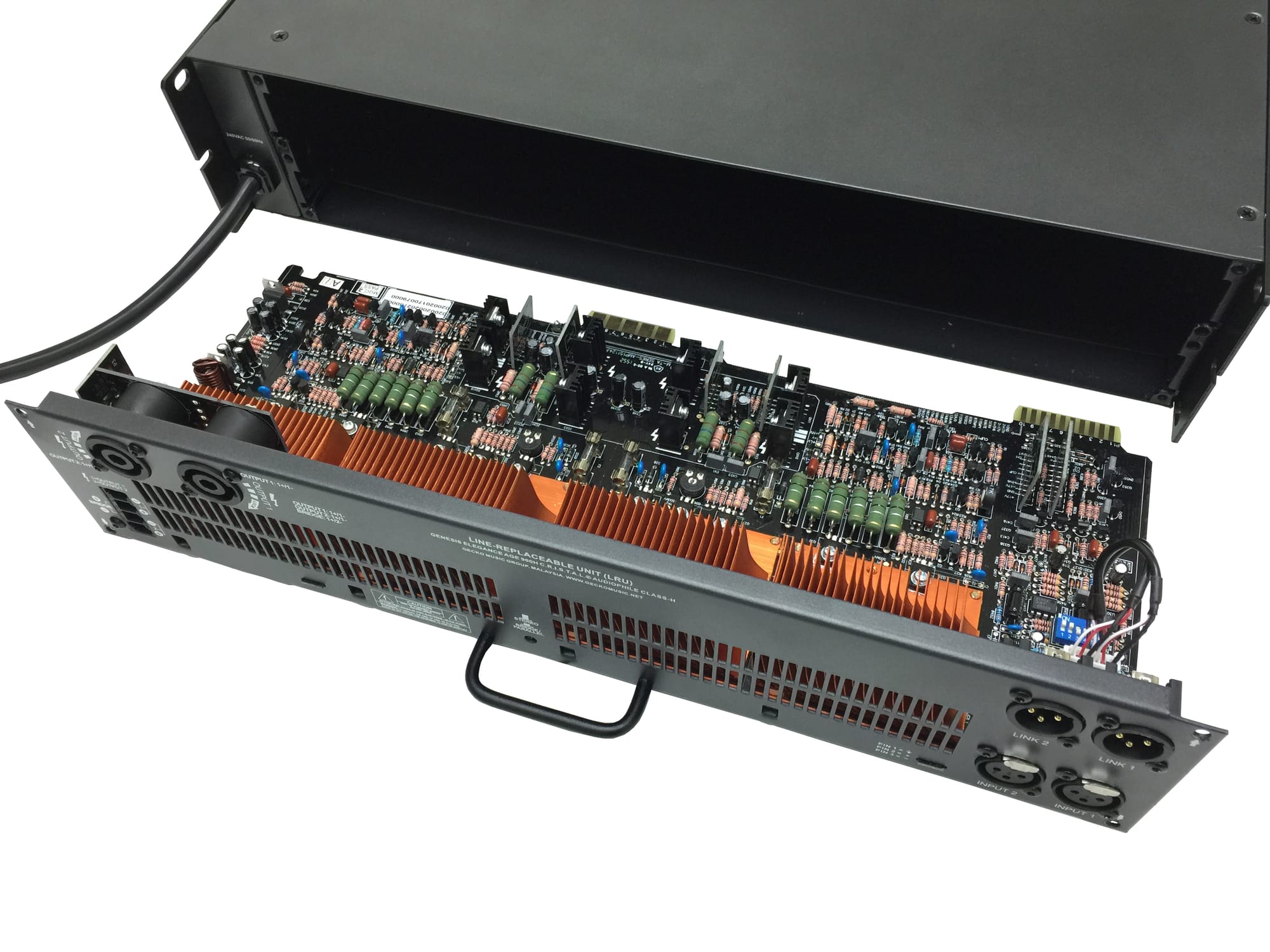

Revolutionary LRU design allows easy replacement (can be done within minutes) of the LRU module, or provides easy system access for maintenance purposes should you need to do so.

SPECIFICATION

  • Amplifiers: GECKO® 16-Stage C.R.I.S.T.A.L.® Audiophile Class-H
  • Frequency Response: 10Hz ~ 35kHz, +/- 0.5dB

Rated Outputs

  • GECKO® GENESIS ELEGANCE AGE 300H: 8Ω: 350W per Channel; 4Ω: 525W per Channel; 8Ω: 1050W (BRIDGE)
  • GECKO® GENESIS ELEGANCE AGE 600H: 8Ω: 600W per Channel; 4Ω: 850W per Channel; 8Ω: 1650W (BRIDGE)
  • GECKO® GENESIS ELEGANCE AGE 900H: 8Ω: 900W per Channel; 4Ω: 1300W per Channel; 8Ω: 2700W (BRIDGE)

System Performance

  • Input Sensitivity (8Ω): 1V
  • Damping Factor (8Ω, 20Hz ~ 1kHz): 400
  • Slew Rate: 25/μs (AGE 300H) / 30V/μs (AGE 600H) / 35V/μs (AGE 900H)
  • THD + N: <0.03% (AGE 300H) / <0.05% (AGE 600H) / <0.08% (AGE 900H)
  • Signal-to-Noise: >100dB
  • Crosstalk: >70dB @ 1kHz

Amplifier Protections

  • Mid-Point DC Drift, Short Circuit, Open Circuit, Thermal, Overload, Clip Limiter, Soft Start, Ultrasonic and RF

Audio Connectors

  • Input: XLR Female (2)
  • Link: XLR Male (2)
  • Output: 4-Pole SPEAKON (2), 4-Conductor Screw Terminal Socket

Power Supply

  • Built-In Power Supply (choose either 110V or 240V, 50/60Hz model)

Physical Properties

  • Enclosure: Steel Chassis/Line-Replaceable Unit (LRU) Module

  • Faceplate: One-Piece Aluminium Front Panel with Handles (2) and Detachable Cooling Vents (2)
  • Rack-Mount: Yes. Total 8 Mounting Points (M6 x 0.1mm)
  • Color: Metallic Grey/Silver
  • Hardware: 4-Conductor Screw Terminal Adaptor (1), Non-Slip Rubber Feet (4) or Mini Phillips-Head Screwdriver (1)
  • Net Weight: 16.5kg (AGE 300H) / 18.5kg (AGE 600H) / 19kg (AGE 900H)
  • Dimension: (H) 90mm x (W) 483mm x (D) 462mm
